Ravo I5 Sweeper - Fayat Group


Get Quote

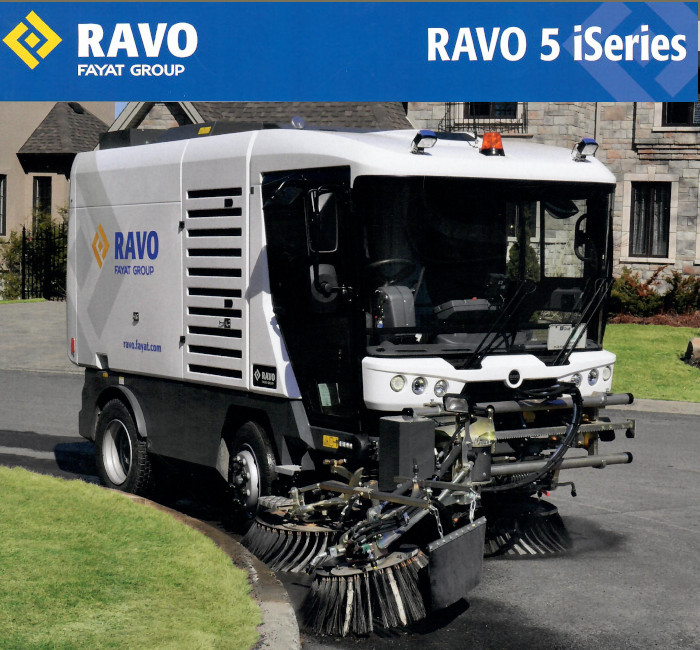

The RAVO 5 iSeries is designed to perform and is known for its robust character which combines high quality with extreme reliability and comfort. Besides the sweeping machine we also have the Genuine Parts collection to make sure you can keep the RAVO 5 iSeries in optimal condition. RAVO Genuine Parts are always the right fit with the best price/quality ratio.

Equipped with a Cummins Tier 4 final engine, an attractive cabin interior design and a state of the art intelligent sweeper monitoring system the 5 Series sets the benchmark in sweeping.

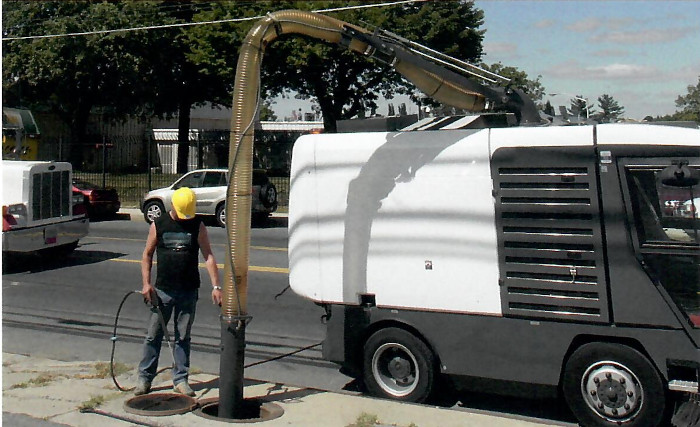

The unmatched performance is the result of a pure vacuum suction line combined with RAVO's unique broom system.

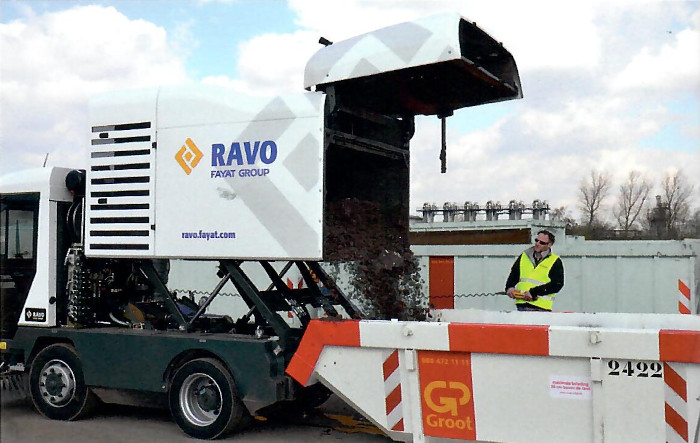

Spring or Autumn, sand with pine needles or leaves, main streets or bicycle lanes, smooth tarmac or cobblestones, the 5 iSeries will clean every street in one pass. Storing all debris in its spacious 6.5 cubic yard stainless steel hopper with an unrivalled compaction rate.


Every RAVO is standard equipped with:


  • An ergonomically designed cabin with adjustable steering column, dashboard and arm rest
  • Rear view and suction mouth camera
  • Air conditioning
  • Air ride operator seat
  • Stainless steel hopper with a volume up to 6.5 cu yd.
  • Loading capacity of 12,125 Ibs.
  • Extreme manoeuvrability with a turning circle of only 199 inch. (curb to curb)

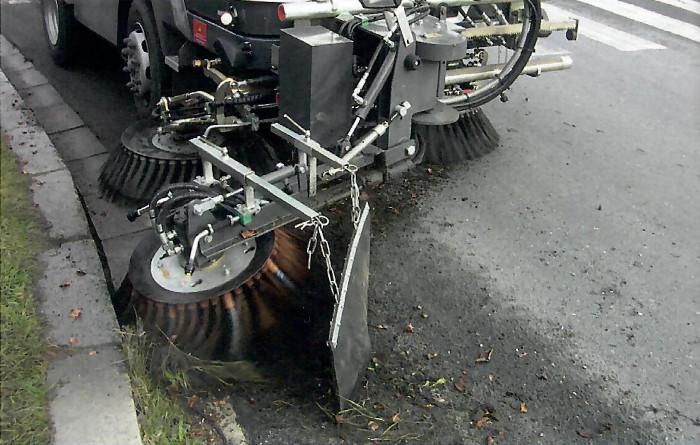

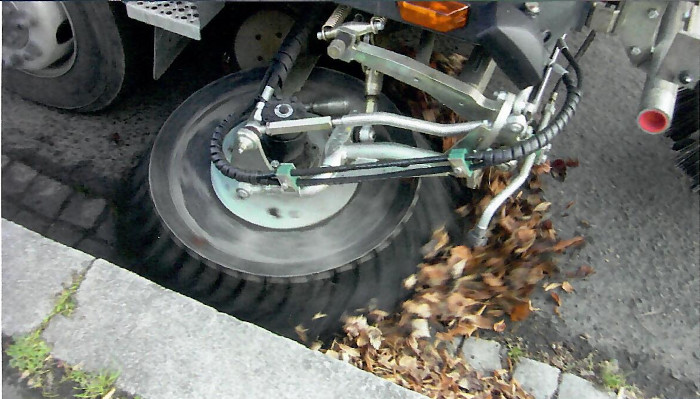

  • RAVO's unique pulled broom system
    - Constant brush pressure extends the broom life with 50%
    - Maintenance friendly: no greasing points.
  • One engine powers all: fuel savings up to 42%
  • Hydraulic front suspension with automatic levelling system
  • Linde hydraulics
  • Heavy duty package
  • Only 15 greasing points on the whole machine
  • Sweeping in reverse mode.
